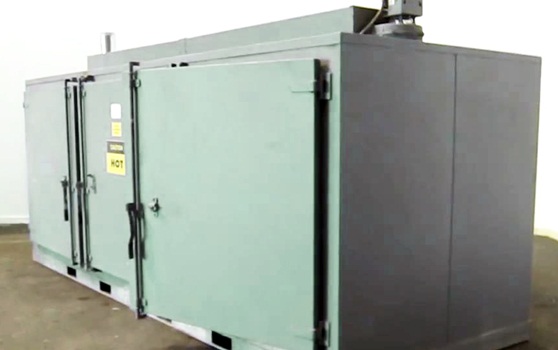

Thermic Fluid Heated Drum Heating Oven

Overview

Celsun is on a mission to become the most respected leader in heat management world, and it brings same inspiration, in producing extensive line of Drum heating ovens. When you, require safe and economic solutions for your drum heating, you can completely rely on us. CELSUN design & manufactures a full line of drum & tote heating ovens (Hot Boxes) heated by Hot Oil to heat materials to a maximum temperature of 230°C. Standard models accommodate 1, 2, 4, 8, 12, 16 & 24 drums, or 1 to 8 totes. The Panel and Instruments come with flameproof certificates, if you need Oven for Hazardous Area. Apart from standard design, Custom engineered, computer designed units are available, on request.

Celsun Thermic oil drum Ovens features best-in-class digital controls with independent over-temperature protection. We incorporate High density finned heat exchangers for fasted heating. Steam Models are designed to assure you, years of trouble-free operation, perfect for your drum storage and drum heater needs. Steam heated drum Ovens are used to maintain the temperature or viscosity control or Melting. Steam / Oil / Hot Water heated drum Oven is best suitable if you have excess steam, Thermic Fluid at your plant. Also these type ovens are recommended if Area is Hazardous or drum contains high volatile/ flammable fluid.

Specification

The Electric Drum Oven has many unique features

  • Rugged steel construction

  • Portable; just pick-up with a forklift

  • Optional spill containment

  • Zero-ground clearance available.

  • 5-year Manufacturer's extended warranty, if required.

  • Optional Control valve, Steam accessories on request.

  • Optional Vent, drain, Pressure Release Valve on request.

  • Optional customized design and accessories on request.

Capacity

1 drum (200 liter), or 2 drums or 4 drums or 8 drums or 12 drums or 16 / 24 drums or customized.

Materials of Construction

All steel construction includes

  • 12/ 14 / 16 gauge interior walls and 12 / 14 / 16 gauge exterior walls

  • MS Integrated framing and structural members ensure toughness

  • 304 / 316 stainless steel construction available, on request.

Insulation

75 / 100 mm thick, 100 kg/m3 density mineral wool.

Air Circulation

Suitable CFM air circulation Fans with controls; 0.5/1/2/3/5 HP, TEFC

Heating Medium

LP Steam or Thermic Fluid or Hot Water

Heat Capacity

10,000/ 25,000 / 50,000 / 75,000 / 100,000 / 150,000 / 200,000 / 300,000 Kcal /hour.

Panel

Flameproof / Non-flameproof Panel with Digital temperature controller with independent high temperature cut off. (You have option to give us your specification)

Temperature Range

Room temperature to 230°C. ( depends upon input Temperature of Steam / Oil)

Finish

  • Exterior finished with acrylic enamel. (Color as per your choice)

  • Interior finished with heat resistant silver.

  • Stainless steel available. (Matt or glossy, as per your choice)

Installation

The Oven is completely assembled. You need to set in place and hook up power supply & steam / oil inlet. Supervision, technical assistance, Manual & after sales services support available.
